Quick summary

Specify the complete turnbuckle assembly: end fittings, minimum and maximum lengths, usable take-up, thread engagement and rated duty.

A turnbuckle is an adjustable connector, but buyers often quote only a nominal thread size. That leaves unanswered whether the assembly can actually reach the required installed length.

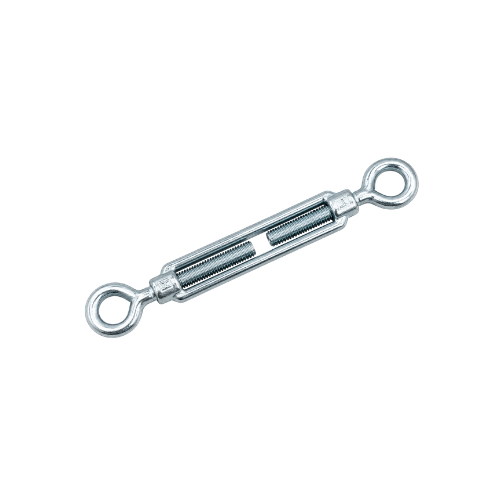

Understand take-up

Turning the body changes the distance between opposite-hand threaded ends. The useful range is not unlimited: each end must retain the engagement required by the approved product instructions. Record the installed length you expect and the adjustment still needed for tensioning, then check both extremes.

Select eye, hook or jaw connections

The ends determine how the turnbuckle attaches to the cable, rod or structure. An eye offers a closed connection; a jaw may connect with a pin; a hook can be easier to attach but may require extra attention where slack could let it disengage. Choose from the load path and site procedure, not appearance.

Rate the complete assembly

The body, fittings, pins and connection hardware work together. The weakest rated component can control the usable duty. Where the assembly is safety-critical, ask for product-specific rated data and installation instructions. A nominal thread diameter or a material name is not a working load limit.

Send the right measurements

Include minimum and maximum overall length, required adjustment travel, end connection dimensions, thread system, material, finish, quantity and documentation. If several assemblies share one project, assign location tags so identical-looking lengths do not get mixed during installation.

A practical example

A cable brace can require a short installed length and still need room for later retensioning. If the turnbuckle arrives nearly fully extended, there may be no usable take-up left even though the initial fit looks acceptable. State the target installed length, expected adjustment and minimum engagement at both extremes so the supplier can quote a configuration that actually works on site.

Before you send the enquiry

Use this short check before you ask for price or delivery. It keeps the quotation tied to your actual engineering requirement.

  • End combination: eye, hook or jaw
  • Body and thread size/handedness
  • Minimum and maximum overall length
  • Adjustment travel and required tension
  • Material and finish
  • Pins, locking parts and mating hardware
  • Quantity, standard and documents

Where to go next

Need product-specific manufacturing or supply information? Use the relevant buying page below, then send your controlled drawing and required document list.

External engineering reference: OSHA rigging equipment requirements (US). This is a research link, not a claim that every Lohar product is certified to the referenced standard. Confirm product-specific compliance in your purchase order.

Key Takeaways

▸Specify the complete turnbuckle assembly: end fittings, minimum and maximum lengths, usable take-up, thread engagement and rated duty.
▸Understand take-up
▸Select eye, hook or jaw connections

← Back to Blog

Turn the selection into a checkable enquiry

Choose the two end fittings before specifying the finished length. The body length, shortest overall span, longest permitted working span and available take-up are different dimensions. Keep both fittings properly engaged and follow the exact assembly's locking and installation instructions. A DIN 1480 body chart describes a reference body pattern, not the complete length or working-load limit of every eye, hook or jaw combination.

Record the decision in a short specification: product pattern, size and thread, material or grade, finish, quantity and intended duty. Add the drawing revision and critical interfaces. An enquiry with these fields lets the manufacturer identify a mismatch before a price becomes an order.

Use the matching manufacturer guide for standard-reference information and compare the available product family. Send a custom drawing by email or WhatsApp rather than deriving non-standard geometry from a photograph. For lifting or other safety-critical service, obtain the exact assembly instructions and verified documents before use.

FAQ

Frequently Asked Questions

Need a specific answer?

Send your drawing or requirement — we reply within 24 hours.

WhatsApp
How much turnbuckle adjustment should I allow?

Use the engineered installed length and the selected product’s permitted travel, while maintaining required thread engagement.

Is a hook end interchangeable with an eye end?

Not automatically. Connection security, dimensions and the rating of the whole assembly must be checked.
