Lifting & Rigging
Shank Hooks Product Range
A shank hook is a forged lifting hook with a straight threaded or plain shank instead of an eye, so it can be fitted directly into a hoist block, crane bottom block or fixture. Lohar Forging supplies forged shank hooks in steel and stainless steel.
Product Catalogue
Shank Hooks Range
Specifications
| Material | Forged Steel / Stainless |
|---|---|
| Type | Shank / eye hook |
| Latch | Safety latch option |
| Use | Lifting & hoisting |
| Sizes | On request |
Buyer's guide
How to choose a shank hook
A shank hook is chosen when the hook must be mounted rigidly in a block, beam or fixture rather than hung from a chain or sling. The shank passes through the mounting and is secured with a nut, often with a thrust bearing so the hook can rotate.
Shank hook or eye hook?

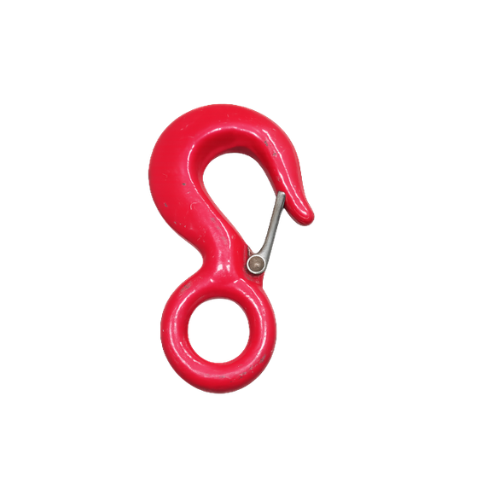

A shank hook mounts into equipment. An eye hook has a closed eye that connects to a chain, shackle or sling. Choose by how the hook will be attached, not just by size.
What to specify
- Shank diameter, thread and length to suit the block or fixture.
- Throat opening needed for the sling or ring that will sit in the hook.
- Material and finish for the working environment.
- Whether a safety latch is required.
- The documented working load required for the application.
Why forged?
Forging keeps the grain of the steel flowing continuously around the bend of the hook, which gives better strength and fatigue resistance than casting. This matters most at the hook's throat and shank, where stress is concentrated.
Inspect hooks before use for throat opening, twisting, cracks and thread damage. Read our lifting hook inspection and RFQ questions and the full MS shank hook supplier guide.
FAQ
Frequently Asked Questions
Why is a forged hook better?
Forging keeps the steel's grain flowing continuously through the throat and shank, the highest-stress areas. Cast or fabricated hooks don't have this and can fail more suddenly.
Do your hooks come with a safety latch?
Yes, a safety latch can be fitted to keep the sling or chain seated in the hook under load.
What load can the hook take?
Rating depends on size and material. Tell us your working load limit and we'll supply the correct hook.
Do you make stainless hooks?
Yes, stainless shank hooks are available for marine and corrosive settings.
Need a drawing-based quotation?
This catalogue shows product configurations. The technical buying guide covers material selection, inspection and export RFQs.
