Swivel Lifting Eye Bolts Product Range
A swivel lifting eye bolt is a lifting point whose eye can rotate through 360° and pivot, so it aligns itself with the direction of the load. This lets one lifting point handle angled and multi-leg lifts that a fixed eye bolt cannot.
Product Catalogue
Swivel Eye Bolts Range

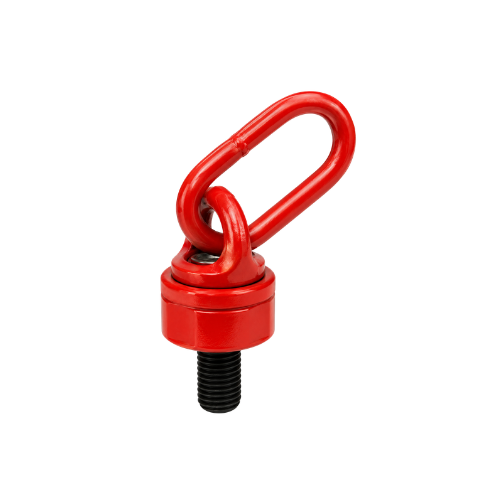

Rotating Swivel Eye Bolt
Rotating Swivel Eye Bolt enquiries need a clear specification of the component, its mating interface and it...
View product

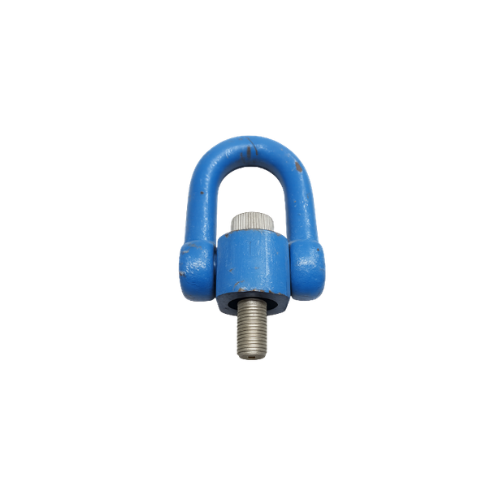

Swivel Eye Bolt
Swivel Eye Bolt enquiries need a clear specification of the component, its mating interface and its intende...
View product

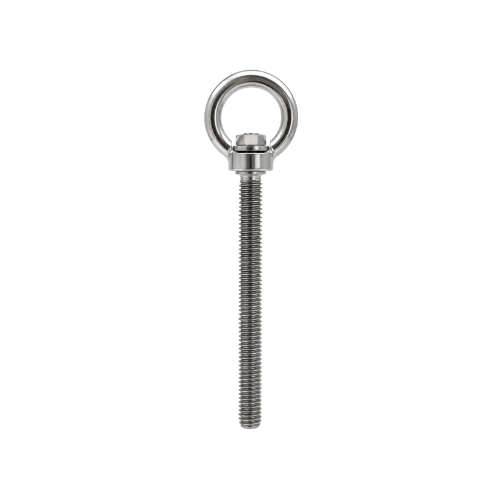

Swivel Eye Bolt With Extra Long Thread
Swivel Eye Bolt with Extra Long Thread enquiries need a clear specification of the component, its mating in...
View product

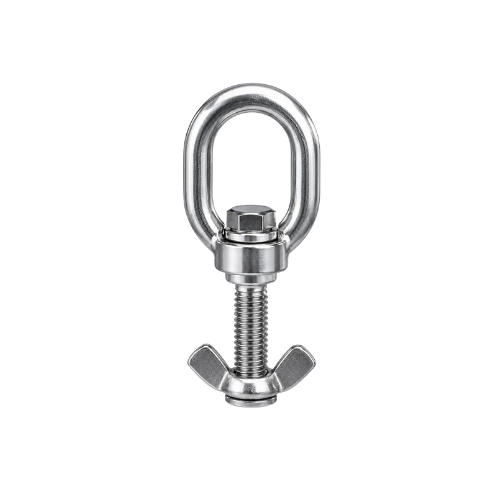

Swivel Eye Bolt With Wing Nut
Swivel Eye Bolt with Wing Nut enquiries need a clear specification of the component, its mating interface a...
View productSpecifications
| Material | Carbon Steel / SS / Titanium |
|---|---|
| Feature | 360° swivel |
| Nut | Wing nut option |
| Use | Angled lifting & rigging |
| Finish | Plated / SS natural |
Buyer's guide
How to choose the right swivel eye bolt
Swivel eye bolts are chosen when the sling angle changes during a lift or when several legs pull from different directions. The swivel reduces the bending stress that would act on a fixed eye in the same situation.
Swivel eye bolts in our range
- Swivel eye bolt – the standard pattern for angled lifting points on machinery and moulds.
- Rotating swivel eye bolt – designed to turn freely under load as the lift moves.
- Swivel eye bolt with extra-long thread – for deep tapped holes or thick plates where standard thread length will not give full engagement.
- Swivel eye bolt with wing nut – for through-hole mounting that can be fitted and removed by hand.
Fixed or swivel?
A fixed eye bolt is intended for straight, in-line pulls. If the load direction is angled or changes, use a swivel. Our comparison of a fixed eye bolt vs a swivel lifting eye explains when each is appropriate.
Selection checklist
- Thread size, pitch and engagement length in the parent material.
- Sling angle range and number of legs.
- Material: carbon steel, stainless steel, or titanium for specific applications.
- Installation torque and inspection requirements from the product documentation.
Confirm the rated capacity for the exact size and lift angle before use, and inspect the swivel action, threads and eye before every lift.
FAQ
Frequently Asked Questions
Why use a swivel eye bolt instead of a fixed one?
A swivel rotates to align with the direction of pull, so the load stays along the bolt's axis. Fixed eye bolts can bend or lose rating when loaded at an angle.
Do you offer titanium swivels?
Yes. Titanium gives high strength at low weight, which suits aerospace, marine and weight-sensitive applications.
What is the wing nut for?
The wing nut allows hand tightening and quick adjustment without tools — handy for temporary or frequently changed rigging.
Are these suitable for overhead lifting?
Many are, but rating depends on size and material. Tell us your load and angle and we'll confirm the right model.
