Lifting & Rigging
Shackles Product Range
A shackle is a U-shaped metal link closed by a removable pin, used to connect slings, chains, wire rope and lifting points. Lohar Forging supplies bow and D shackles with screw or round pins in stainless steel and mild steel.
Product Catalogue
Shackles Range

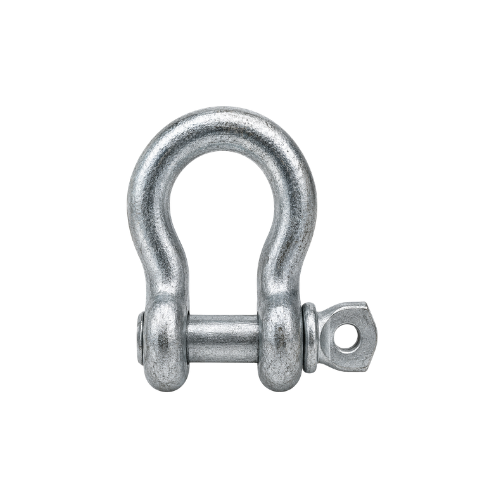

MS Bow Shackle
MS Bow Shackle enquiries need a clear specification of the component, its mating interface and its intended...
View product

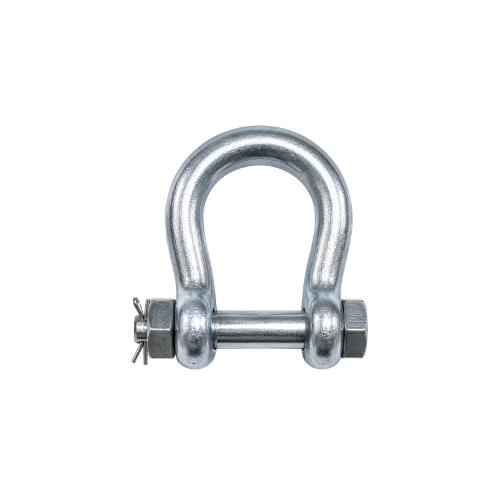

MS D Shackle
MS D Shackle enquiries need a clear specification of the component, its mating interface and its intended d...
View product

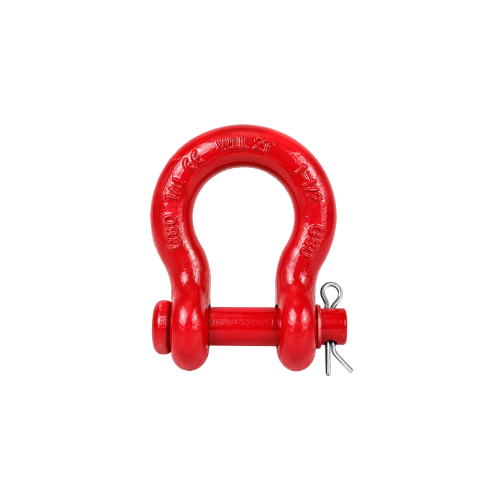

Round Pin Shackle
Round Pin Shackle enquiries need a clear specification of the component, its mating interface and its inten...
View product

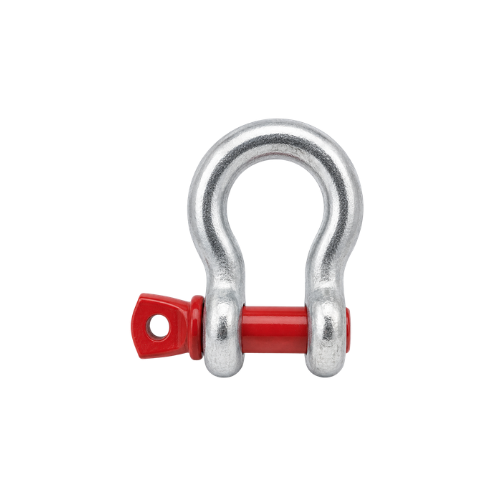

Screw Pin Shackle
Screw Pin Shackle enquiries need a clear specification of the component, its mating interface and its inten...
View product

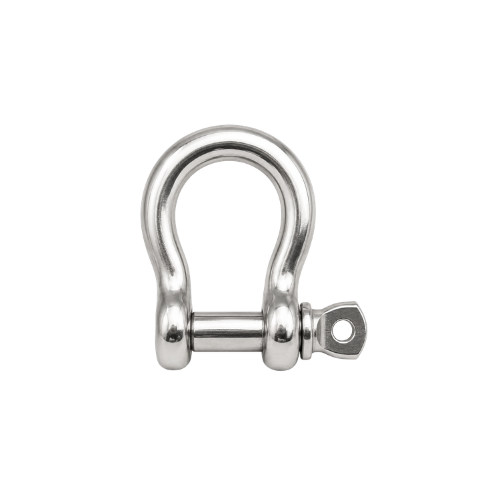

SS Bow Shackle
Stainless Steel Bow Shackle enquiries need a clear specification of the component, its mating interface and...
View product

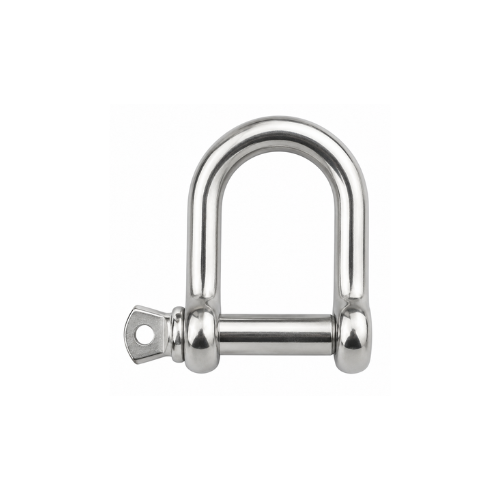

SS D Shackle
Stainless Steel D Shackle enquiries need a clear specification of the component, its mating interface and i...
View productSpecifications
| Material | Stainless Steel / Mild Steel |
|---|---|
| Body | Bow & D (Dee) |
| Pin Type | Screw pin, round pin, bolt-nut |
| Finish | Galvanized / SS natural |
| Sizes | Small to heavy, custom on request |
Buyer's guide
How to choose the right shackle
Shackles are chosen by body shape, pin type, material, size and the documented working load for the exact size. Each choice affects how the shackle behaves in a lift.
Bow shackle or D shackle?
A bow (anchor) shackle has a rounded, wider body that accepts several sling legs or loads from slightly different directions. A D (dee) shackle has a narrower body for straight, in-line connections. Compare them in our guide to D shackle vs bow shackle and pin selection.
- Bow shackles: MS bow shackle, SS bow shackle
- D shackles: MS D shackle, SS D shackle
Screw pin or round pin?
A screw pin shackle is quick to fit and remove, which suits temporary rigging. A round pin shackle uses a pin retained by a cotter or split pin and is used for tie-downs and towing where the pin must not rotate loose. For long-term or permanent installations, a bolt-type pin with a nut and cotter is the usual choice.
Material and environment
Stainless steel shackles are preferred for marine, offshore and washdown use. Galvanized or self-colour mild steel suits general rigging. See stainless shackle grade and corrosion questions for more detail.
Before use, confirm the rated capacity of the exact size from the supplier's documentation and inspect the body and pin for wear, deformation and thread damage.
FAQ
Frequently Asked Questions
What's the difference between a bow and a D shackle?
A bow shackle has a rounded, wider body that takes loads from several directions, good for multi-leg slings. A D shackle is narrower and best for straight, in-line loads.
Which pin type should I choose?
Screw pins suit rigging that's changed often; round pins with a cotter suit permanent installations; bolt-nut pins give the most secure, long-term fixing.
Do you offer stainless shackles for marine use?
Yes, our SS bow and D shackles are made for marine and corrosive environments.
Can I get separate SS and MS options?
Yes — we make and photograph SS and MS shackles separately so you order exactly the material you need.
Need a drawing-based quotation?
This catalogue shows product configurations. The technical buying guide covers material selection, inspection and export RFQs.
