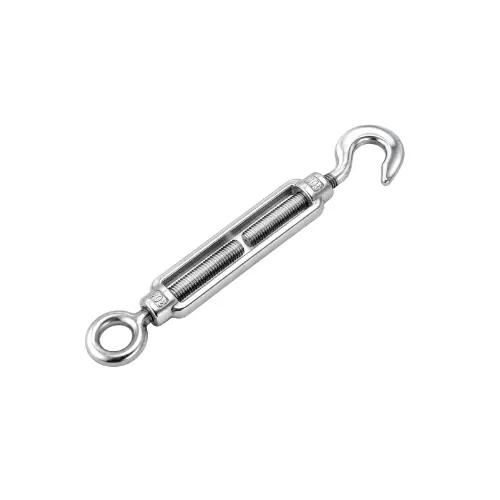

SS Turn Buckle

The Stainless Steel Turnbuckle enquiry needs both a material grade and an end-fitting definition. The saved record confirms stainless steel as the broad material description but does not specify grade, end configuration or adjustment range. Ask the buyer to identify those requirements explicitly.

Discuss exposure conditions and the mating materials alongside body length, threads and take-up travel. A stainless surface does not establish suitability for every chemical or marine environment. Confirm the actual finish and any required documentation in the quote.

Compare stainless and mild-steel options through the project's material and operating requirements, not a universal better-or-worse claim. Keep rated tension and installation limits tied to the exact completed assembly. The catalogue's broad name should lead to a precise technical enquiry rather than an assumed standard component.

A turnbuckle adjusts the distance between compatible attachment points through its threaded body and end fittings. Common designs combine left-hand and right-hand threads so body rotation changes the assembly length. Confirm the exact thread arrangement and adjustment range for the selected product rather than assuming every catalogue form shares the same construction.

End fittings determine how the assembly connects to the surrounding equipment. Closed eyes, open hooks and pin-connected jaws create different access and retention requirements. Choose the ends for the mating components and operating conditions, not just for convenience during installation. An end fitting that attaches easily may still create an unsuitable connection geometry.

Separate adjustment from rated load performance. A large body, stainless surface or substantial-looking hook does not establish a working load limit. If the application requires a rated tensioning or lifting assembly, request the exact rating, instructions and approved end configuration. Do not combine unverified parts from different assemblies to obtain a convenient overall length.

Distinguish body length, overall assembly length and available take-up travel. These measurements answer different installation questions. A turnbuckle that fits at one position may lack the adjustment needed for the final assembly. Ask for the measurement reference points and the permitted operating range for the exact product.

Check the thread designation at each end and confirm the handedness. The drawing should identify the interface and any engagement or adjustment limits. Do not extend the ends to an assumed safe limit simply because several threads still appear to engage. Follow the approved instructions for the product and duty.

Include the starting installation length and the desired final adjustment range in the enquiry. Also identify the space available to operate the body and inspect the ends. A clear drawing can prevent a quote for a component that matches the nominal size but cannot adjust within the assembled equipment.

Specify the base material, finish and exposure conditions. Mild steel and stainless steel forms can differ in material and surface requirements, but the material label does not determine the permitted tension. Discuss wet service, dissimilar materials, chemical exposure and maintenance conditions separately from the end-fitting geometry.

Ask how the approved assembly addresses movement, adjustment retention and inspection. Do not invent a locking method or apply a generic torque value to an unverified turnbuckle. The equipment designer should define the operating procedure and any secondary retention required by the application.

Inspect the body, ends and threaded interfaces for damage, distortion, corrosion and engagement problems. Check any specified pins or retainers as part of the assembly. If an end fitting shows bending or the adjustment no longer operates normally, investigate the assembly under the approved procedure rather than forcing the component back into position.

Separate the starting installed length from the final required length and the adjustment available between them. Confirm the reference points used for take-up travel. The visible thread or open space does not establish a safe extension limit. Ask for the approved operating range and any engagement restrictions of the exact assembly. Include access for adjustment and inspection; a component can fit statically yet remain impractical to operate.

Record the thread system, nominal size and pitch together. Identify left-hand or right-hand operation where the assembly requires it. The drawing should also state any tolerance or engagement requirement. Check the mating component rather than treating the loose part as an isolated specification. If the existing thread shows wear, use the equipment reference or a verified gauge result to resolve the original requirement. Keep any illustrative metric reference separate from the sizes Lohar confirms for the order.

Specify the pin diameter, the interface it enters and the intended retention arrangement. Check the connected component's thickness and the space needed to insert, remove and inspect the pin. Do not substitute another loose pin because it appears to fit. Keep the closure and retention requirements with the complete assembly description. If a drawing specifies a pin centre or bearing surface, use that reference when checking the mating part.

State the actual material requirement rather than relying on an abbreviation. Separate the material designation from mechanical properties and any application-specific rating. If the project needs a certificate or traceability record, identify the required document at enquiry stage. Ask which records Lohar can provide for the quoted component. Keep every public grade or performance claim aligned with that confirmation; a generic material field does not establish all possible grade options.

Specify the required process or project reference where the finish matters to service. A colour or bright appearance cannot establish chemistry, thickness, corrosion life or compliance. Consider how the finish interacts with threads and connection surfaces. Ask Lohar to confirm the actual process and any records included in the quote. Do not turn a broad catalogue finish description into a quantified coating claim without batch or process evidence.

A useful enquiry gives the supplier enough information to distinguish the required component from a similar catalogue item. Send an approved drawing where you have one. Include the drawing revision, units, quantity and any mating-part reference. If you start from a sample, explain which dimensions matter to fit and which features merely reflect an old manufacturing choice.

Identify tolerances through the drawing or relevant specification rather than asking for a general close fit. Mark critical interfaces clearly. A dimension that controls a pin fit needs a different discussion from a noncritical external envelope. Ask the supplier to flag any unclear reference point before agreeing the manufacturing description.

For a repeat order, reference the previously approved drawing and revision. Do not rely only on a product name from an earlier invoice. Changes in the machine, material or finish may require a new technical review. A short, precise purchase description with an approved attachment works better than a long list of unverified catalogue claims.

Decide what you need to verify at receipt before placing the order. The acceptance plan may include dimensional checks, thread fit, material identification, finish requirements or application-specific documents. Tell Lohar which checks and records the project requires so the quotation can confirm the scope. Do not assume that a generic catalogue entry includes every possible certificate.

Agree how the drawing, sample and inspection records identify the ordered variant. Keep the product description consistent across the enquiry, quotation and purchase order. If a supplied sample controls the interface, record its approval and any agreed differences. This helps purchasing, production and maintenance teams review the same requirement.

When the application demands traceability, request the relevant batch or component identification and confirm what documentation accompanies supply. For a safety-critical duty, the responsible engineer or competent person must define the acceptance criteria. A marketing description, surface appearance or five-star rating cannot replace that technical review.

State the total quantity and explain whether you need one project batch, repeat releases or a trial quantity before a larger order. Those arrangements can affect production planning and the quotation. Share the required delivery destination and the target date, then ask Lohar to confirm the actual schedule. Avoid treating a generic response-time statement as a guaranteed manufacturing lead time.

For domestic or export enquiries, identify any packaging, marking or document requirements in advance. Parts that look similar may need separate labels or packing groups for assembly. If the project uses several drawing revisions, make the required quantities clear for each one. Protect thread and connection surfaces according to the agreed packing specification.

Ask the quotation to identify the component scope, material, finish, documents and agreed delivery arrangement. Compare quotations on those details instead of price alone. A lower-priced item with an unclear interface or missing required records can create a more expensive installation problem.

Review the quotation against the approved drawing line by line. Confirm the actual variant, material, finish, dimensional references, supplied accessories and required documents. Ask the supplier to identify any exception clearly. A familiar product name can hide an important difference in head geometry, mounting length, closure arrangement or included hardware.

If the equipment's operating requirement changes, return to the technical specification rather than treating the old order as automatic approval. A new environment, mating component or load arrangement can change the selection. Keep the maintenance or design team involved where the joint or connection affects safety or reliable operation.

On receipt, inspect the supplied parts under the agreed acceptance plan before installation. Check identification and documents along with the relevant dimensions and interfaces. Escalate a mismatch instead of modifying the component to force a fit. That approach makes the purchasing record useful to the next team member and helps prevent the same uncertainty on a repeat order.

This table defines RFQ requirements. It is not a Lohar available-size chart or a load-rating table.

Generic thread reference only; not an available product-size list, tolerance table or load chart. Confirm the actual mating thread. Source: Bossard metric ISO thread reference.
