Fully Threaded vs Partially Threaded Hex Bolts: Which Fits?
Quick Summary
Choose full or partial thread from the joint drawing and load path. The location of the plain shank, thread engagement and grip length matter more than a general claim that one type is stronger.
Table of Contents
The head may look identical, but the length of thread changes how a hex bolt sits in the joint. Before asking which one is “better,” ask where the shear plane and nut will be.
The practical difference

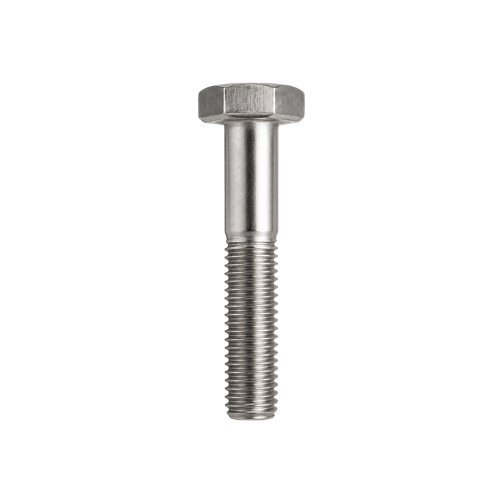

A fully threaded bolt carries thread for most of its length. A partially threaded bolt has a plain shank under the head. That plain portion can be intentional in a joint where the designer wants a particular bearing or shear interface. The final choice depends on the approved geometry, not a catalogue picture.
Check grip and engagement
Measure the combined thickness of the parts and washers, then compare it with the bolt’s shank and threaded lengths. The nut needs adequate thread engagement without bottoming against the plain shank. A bolt with the right overall length can still be wrong when the transition from plain shank to thread falls in an unsuitable position.
Material and finish still matter
Thread length is only one variable. Confirm the material or property class, pitch, nut, washer and finish. A coating may affect thread fit; lubrication and surface condition affect an approved tightening procedure. If the fastener is safety-critical, rely on the engineer’s joint design and specified acceptance standard.
A clearer quotation request
Send the drawing, head and diameter, pitch, overall length, required plain-shank length if any, material class, finish and quantity. Include the mating nut and washer in the same enquiry. If you are replacing an installed bolt, do not assume the old part was correctly specified; compare it to the controlled drawing.
A practical example
Suppose a maintenance team measures the old bolt and finds the same overall length in a fully threaded replacement. Before approving it, the team should compare where the threads will sit after installation and how much nut engagement remains. This is a geometry check as well as a material check; the purchase description should record the required shank length if the joint drawing calls for one.
Before you send the enquiry
Use this short check before you ask for price or delivery. It keeps the quotation tied to your actual engineering requirement.
- Hex-head size and across-flats dimension
- Diameter, pitch and overall length
- Full or partial thread and shank length
- Property class or material grade
- Nut and washer specification
- Finish, coating and thread allowance
- Drawing/standard, quantity and certificates
Where to go next
Need product-specific manufacturing or supply information? Use the relevant buying page below, then send your controlled drawing and required document list.
External engineering reference: ISO 898-1 mechanical-property reference. This is a research link, not a claim that every Lohar product is certified to the referenced standard. Confirm product-specific compliance in your purchase order.
Key Takeaways
- ▸Choose full or partial thread from the joint drawing and load path. The location of the plain shank, thread engagement and grip length matter more than a general claim that one type is stronger.
- ▸The practical difference
- ▸Check grip and engagement
Frequently Asked Questions
Is a fully threaded bolt automatically weaker?+
No. Strength depends on the exact joint, material, geometry and load path. Ask the designer which thread position is required.
Can I cut a longer bolt to the required length?+
Only when the approved specification permits the resulting end condition and thread engagement; otherwise order the specified length.
