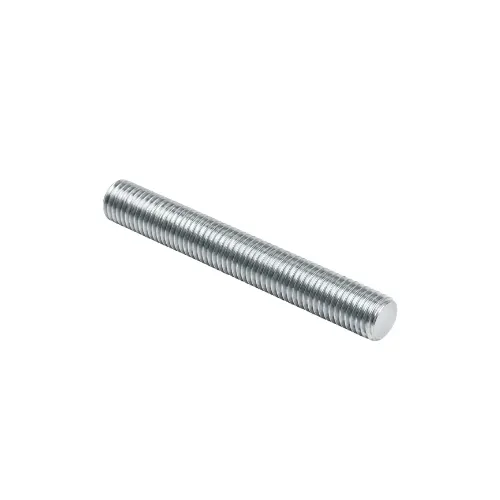

Fully Threaded Stud

A Fully Threaded Stud places threading along its usable fastening length rather than adding a conventional head. That form can help a joint accommodate nuts or threaded interfaces, but it still needs an exact length and thread specification. Do not confuse flexibility in nut position with permission to omit the joint drawing.

Record the complete stud length, nominal diameter, pitch and end form. Check the nut and washer arrangement when the stud passes through a joint. If one end enters a tapped component, identify the required engagement and the base material through the engineering specification.

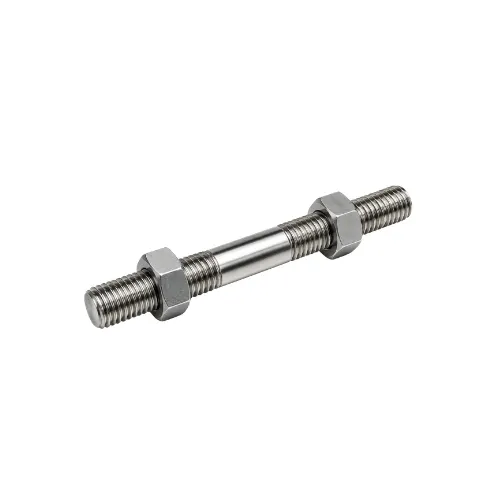

Compare this product with Stud Bolt with Nuts when the supply scope includes matched nuts. The fully threaded description identifies geometry; it does not guarantee a nut package or a specific mechanical class. Ask Lohar to confirm the material, finish and documentation for the actual ordered variant.

A stud provides a threaded fastening interface without a conventional bolt head. Depending on its configuration, it can connect through a joint with nuts or engage a tapped component at one end. Specify that arrangement before choosing the length. A generic stud description cannot establish the correct end form, nut package or engagement.

Check the joint drawing for the thickness of connected parts, washers and nuts. Record how much thread the assembly needs at each interface. The overall length should suit the complete arrangement, not just the visible distance between two faces. Excess length can create interference, while insufficient length can prevent the intended nut engagement.

For an existing installation, identify both the stud and the mating components. A worn or damaged nut can disguise the original thread specification. Use the equipment reference and drawing to resolve uncertainties. If the application involves a controlled-pressure joint, elevated temperature or another critical duty, include the engineering specification rather than selecting a stud by appearance.

Confirm nominal diameter, pitch, thread system and any end-specific requirement. A fully threaded stud and a stud with distinct end threads do not offer the same geometry. The designer should define which form the joint needs. Do not substitute one for the other simply because both can pass through the same opening.

When ordering studs with nuts, specify the nut quantity, thread compatibility, material or property requirements and finish. The nut is part of the fastening system, not an incidental accessory. A matching nominal diameter alone does not confirm the intended mechanical performance or finished fit.

Provide the measurement reference points for the overall stud and any threaded portions. State whether the drawing includes an end chamfer, plain section or other feature. If the finish affects thread fit, discuss the completed assembly rather than checking each uncoated component in isolation. Include a mating sample where the approved drawing cannot resolve the interface.

Choose the stud and nut specifications for the joint's actual conditions. Mild steel and stainless steel labels do not identify a complete grade or temperature limit. Ask for the material designation and any batch documentation the project requires. Do not assume a supplier can provide every grade because the catalogue uses a broad material description.

Use the equipment or joint engineer's tightening procedure. Stud diameter alone cannot establish a safe torque or preload. The material, finish, friction conditions, nuts and joint design affect assembly behaviour. For controlled joints, specify the documentation and installation procedure in the purchase enquiry.

Inspect the threads, end form and any visible deformation before installation. Check the mating nuts and receiving threads as well. Replace or assess components according to the approved maintenance rules. Do not force a damaged stud into a tapped hole or use a nut to conceal an incompatible pitch.

Record the thread system, nominal size and pitch together. Identify left-hand or right-hand operation where the assembly requires it. The drawing should also state any tolerance or engagement requirement. Check the mating component rather than treating the loose part as an isolated specification. If the existing thread shows wear, use the equipment reference or a verified gauge result to resolve the original requirement. Keep any illustrative metric reference separate from the sizes Lohar confirms for the order.

State where each length begins and ends. Overall length, under-head length, plain length, thread length and centre distance can describe different features. Include the connected parts and any washers or spacers that influence the assembly. A dimension without its reference points can produce two reasonable but incompatible interpretations. If you provide a sample, identify wear and clarify which original dimensions the supplier must reproduce.

Specify the number and form of nuts the joint requires, along with their thread and material or mechanical requirements. A stud order does not automatically include a matched nut package. Check washers and the actual joint thickness as part of the drawing review. If the project controls the fastening system's performance, keep the nut requirements in the same purchase specification as the stud. Confirm the supplied accessories before comparing quotations.

State the actual material requirement rather than relying on an abbreviation. Separate the material designation from mechanical properties and any application-specific rating. If the project needs a certificate or traceability record, identify the required document at enquiry stage. Ask which records Lohar can provide for the quoted component. Keep every public grade or performance claim aligned with that confirmation; a generic material field does not establish all possible grade options.

Specify the required process or project reference where the finish matters to service. A colour or bright appearance cannot establish chemistry, thickness, corrosion life or compliance. Consider how the finish interacts with threads and connection surfaces. Ask Lohar to confirm the actual process and any records included in the quote. Do not turn a broad catalogue finish description into a quantified coating claim without batch or process evidence.

A useful enquiry gives the supplier enough information to distinguish the required component from a similar catalogue item. Send an approved drawing where you have one. Include the drawing revision, units, quantity and any mating-part reference. If you start from a sample, explain which dimensions matter to fit and which features merely reflect an old manufacturing choice.

Identify tolerances through the drawing or relevant specification rather than asking for a general close fit. Mark critical interfaces clearly. A dimension that controls a pin fit needs a different discussion from a noncritical external envelope. Ask the supplier to flag any unclear reference point before agreeing the manufacturing description.

For a repeat order, reference the previously approved drawing and revision. Do not rely only on a product name from an earlier invoice. Changes in the machine, material or finish may require a new technical review. A short, precise purchase description with an approved attachment works better than a long list of unverified catalogue claims.

Decide what you need to verify at receipt before placing the order. The acceptance plan may include dimensional checks, thread fit, material identification, finish requirements or application-specific documents. Tell Lohar which checks and records the project requires so the quotation can confirm the scope. Do not assume that a generic catalogue entry includes every possible certificate.

Agree how the drawing, sample and inspection records identify the ordered variant. Keep the product description consistent across the enquiry, quotation and purchase order. If a supplied sample controls the interface, record its approval and any agreed differences. This helps purchasing, production and maintenance teams review the same requirement.

When the application demands traceability, request the relevant batch or component identification and confirm what documentation accompanies supply. For a safety-critical duty, the responsible engineer or competent person must define the acceptance criteria. A marketing description, surface appearance or five-star rating cannot replace that technical review.

State the total quantity and explain whether you need one project batch, repeat releases or a trial quantity before a larger order. Those arrangements can affect production planning and the quotation. Share the required delivery destination and the target date, then ask Lohar to confirm the actual schedule. Avoid treating a generic response-time statement as a guaranteed manufacturing lead time.

For domestic or export enquiries, identify any packaging, marking or document requirements in advance. Parts that look similar may need separate labels or packing groups for assembly. If the project uses several drawing revisions, make the required quantities clear for each one. Protect thread and connection surfaces according to the agreed packing specification.

Ask the quotation to identify the component scope, material, finish, documents and agreed delivery arrangement. Compare quotations on those details instead of price alone. A lower-priced item with an unclear interface or missing required records can create a more expensive installation problem.

Review the quotation against the approved drawing line by line. Confirm the actual variant, material, finish, dimensional references, supplied accessories and required documents. Ask the supplier to identify any exception clearly. A familiar product name can hide an important difference in head geometry, mounting length, closure arrangement or included hardware.

If the equipment's operating requirement changes, return to the technical specification rather than treating the old order as automatic approval. A new environment, mating component or load arrangement can change the selection. Keep the maintenance or design team involved where the joint or connection affects safety or reliable operation.

On receipt, inspect the supplied parts under the agreed acceptance plan before installation. Check identification and documents along with the relevant dimensions and interfaces. Escalate a mismatch instead of modifying the component to force a fit. That approach makes the purchasing record useful to the next team member and helps prevent the same uncertainty on a repeat order.

This table defines RFQ requirements. It is not a Lohar available-size chart or a load-rating table.

Generic thread reference only; not an available product-size list, tolerance table or load chart. Confirm the actual mating thread. Source: Bossard metric ISO thread reference.

• Stud Bolts range
• manufacturing and quality process
• request a fully threaded stud quote

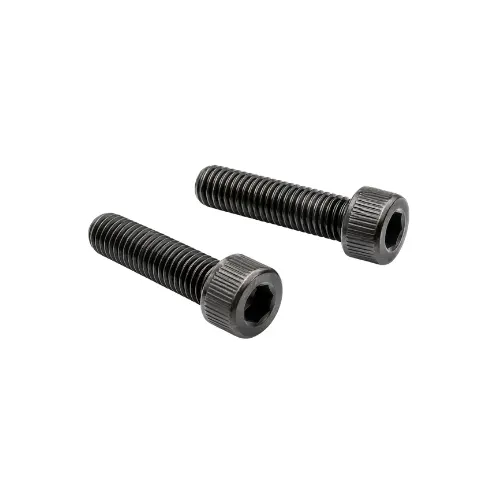

• Compare Mild Steel Allen Bolt
